Image Preprocessing: From Raw Image to Labelled Regions¶

Raw microscopy images often have uneven contrast and noise, and objects are not yet separated from the background. In this notebook, a chain of standard preprocessing steps [6] turns a scanning electron microscopy (SEM) [3] image into a map of separate, numbered regions.

JuSPICE Modules and Classes¶

juspice.io: SPICEData, load_data, save_data
SPICEData.preprocess: built-in preprocessing accessor (see juspice.preprocess_module.PreprocessingAccessor)
juspice.tracking: Tracker

Each spice.preprocess.<method>() call changes spice.data in place, is recorded in spice.history, and returns spice, so calls can be chained.

[1]:

from juspice.tracking import Tracker

tracker = Tracker(include_metadata=True, notes='Preprocessing basics pipeline')

tracker.recording_start()

/Users/amir/GIT_repositories/juspice_pre_release/venvs/.venv/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

[2]:

# --------- Block 0: Setup ----------

# Standard library
from pathlib import Path
import sys
import os
import shutil

# Third-party
import numpy as np
import matplotlib.pyplot as plt

# JuSPICE
from juspice.io import SPICEData, load_data, save_data

# Paths
try:
    notebook_dir = Path(__file__).resolve().parent
except Exception:
    notebook_dir = Path.cwd()

cur = notebook_dir
repo_root = None
for _ in range(6):
    if (cur / 'juspice').exists() or (cur / 'pyproject.toml').exists():
        repo_root = cur
        break
    if cur.parent == cur:
        break
    cur = cur.parent
if repo_root is None:
    repo_root = notebook_dir
if str(repo_root) not in sys.path:
    sys.path.insert(0, str(repo_root))

[3]:

tracker.recording_stop()

Load the image¶

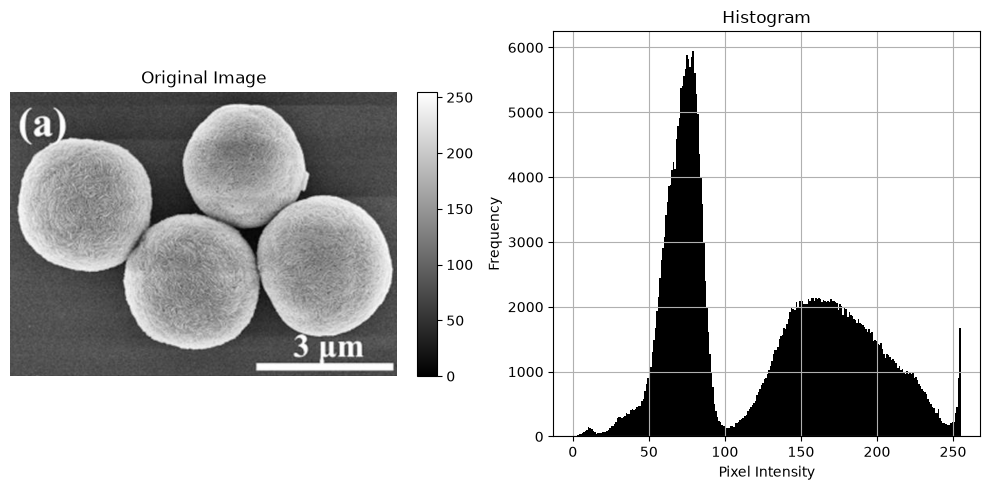

The histogram shows how often each brightness value occurs.

[4]:

tracker.recording_start()

[5]:

# --------- Block 1: Load ----------

image_path = os.path.join(repo_root, 'Sample_data', 'em', '1b935635dd.png')
print(f'Image path: {image_path}')

# `spice` is just a variable name for the SPICEData instance load_data()
# returns here — any name would work; we use `spice` throughout these
# notebooks as an intuitive nod to JuSPICE / SPICEData.
spice = load_data(image_path)
height, width = spice.data.shape[:2]
print(f'Size of the original image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Original Image', show_colorbar=True, show_histogram=True
)

Image path: /Users/amir/GIT_repositories/juspice_pre_release/Sample_data/em/1b935635dd.png
Size of the original image: (512, 697, 3)

../../_images/notebooks_preprocessing_preprocessing_basics_6_1.png

[6]:

tracker.recording_stop()

Improve contrast¶

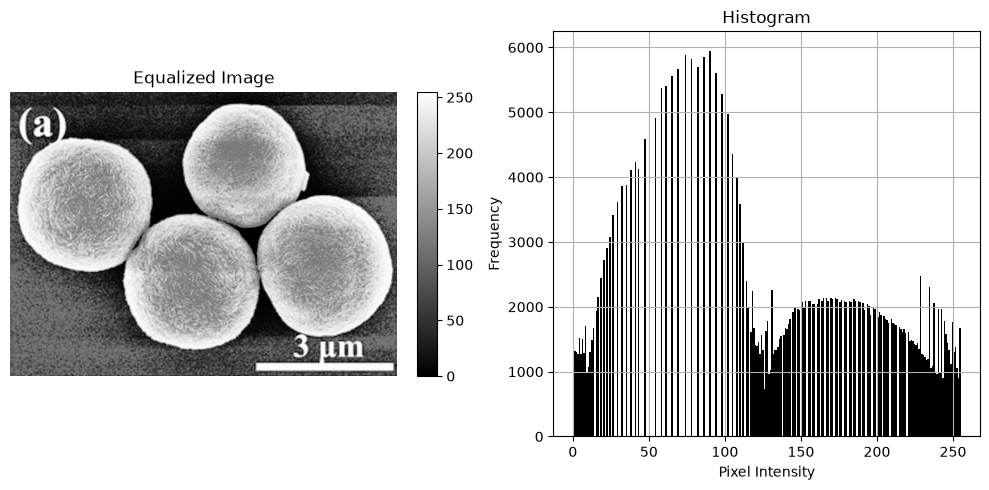

Histogram equalization spreads the brightness values over the full range, making faint details visible. The result is a grayscale image.

[7]:

tracker.recording_start()

[8]:

# --------- Block 2: Histogram equalization ----------

spice.preprocess.equalize_histogram()
print(f'Size of the equalized image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Equalized Image', show_colorbar=True, show_histogram=True
)

Size of the equalized image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_10_1.png

[9]:

tracker.recording_stop()

Standardize¶

The values are shifted and scaled to mean 0 and standard deviation 1. The image looks the same; only the numbers change.

[10]:

tracker.recording_start()

[11]:

# --------- Block 3: Standardize ----------

spice.preprocess.standardize()
print(f'Size of the standardized image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Standardized Image', show_colorbar=True, show_histogram=True
)

Size of the standardized image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_14_1.png

[12]:

tracker.recording_stop()

Resize and downsample¶

Resizing doubles the width and height by interpolation; it adds pixels, not detail.

[13]:

tracker.recording_start()

[14]:

# --------- Block 4: Resize ----------

width_resize_factor = 2
height_resize_factor = 2
width = int(width * width_resize_factor)
height = int(height * height_resize_factor)
spice.preprocess.resize(width=width, height=height)
print(f'Size of the resized image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Resized Image', show_colorbar=True, show_histogram=True
)

Size of the resized image: (1024, 1394)

../../_images/notebooks_preprocessing_preprocessing_basics_18_1.png

[15]:

tracker.recording_stop()

Downsampling keeps every second pixel, returning to the original size. Smaller images make later steps faster.

[16]:

tracker.recording_start()

[17]:

# --------- Block 5: Downsample ----------

spice.preprocess.downsample(factor=2)
print(f'Size of the downsampled image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Downsampled Image', show_colorbar=True, show_histogram=True
)

Size of the downsampled image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_22_1.png

[18]:

tracker.recording_stop()

Rescale to 0–1¶

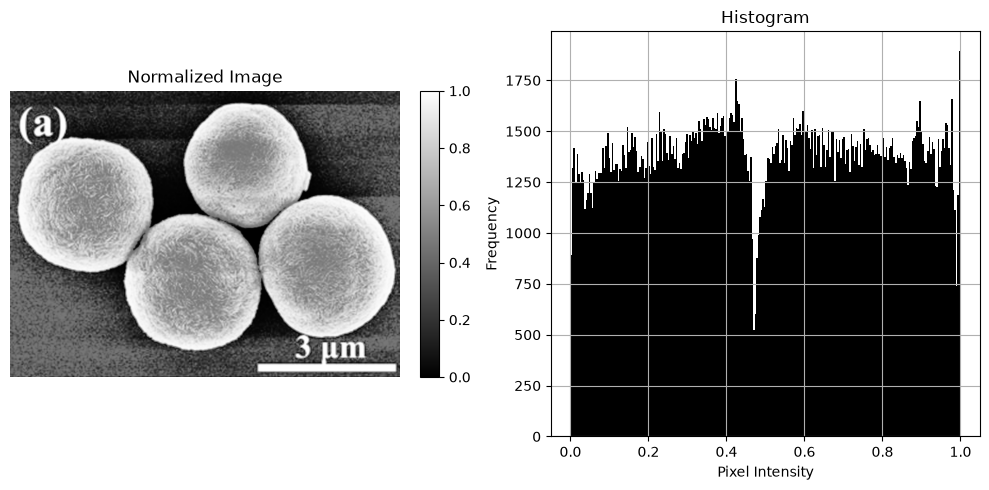

Normalization maps the lowest value to 0 and the highest to 1.

[19]:

tracker.recording_start()

[20]:

# --------- Block 6: Normalize ----------

spice.preprocess.normalize()
print(f'Size of the normalized image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Normalized Image', show_colorbar=True, show_histogram=True
)

Size of the normalized image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_26_1.png

[21]:

tracker.recording_stop()

Reduce noise¶

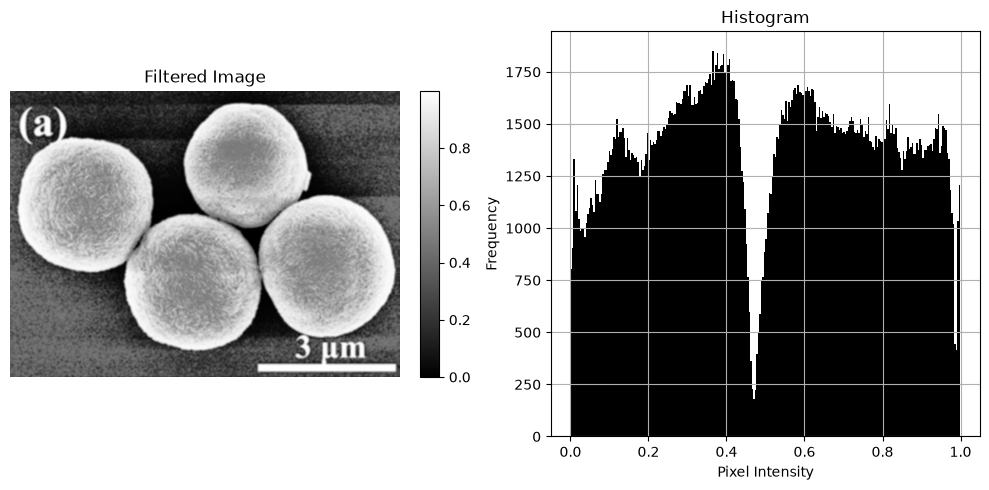

A Gaussian filter averages each pixel with its neighbours, smoothing noise but slightly softening edges.

[22]:

tracker.recording_start()

[23]:

# --------- Block 7: Gaussian filter ----------

spice.preprocess.apply_filter(filter_type='gaussian', kernel_size=(5, 5))
print(f'Size of the filtered image: {spice.data.shape}')
spice.preprocess.show_image(
    title='Filtered Image', show_colorbar=True, show_histogram=True
)

Size of the filtered image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_30_1.png

[24]:

tracker.recording_stop()

Find edges¶

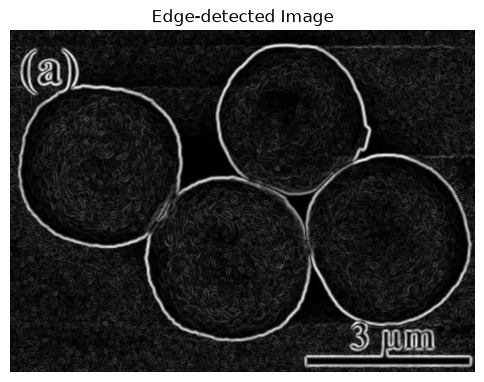

The Sobel filter is large where brightness changes quickly, so boundaries appear bright.

[25]:

tracker.recording_start()

[26]:

# --------- Block 8: Edge detection ----------

spice.preprocess.edge_detection(method='sobel')
print(f'Size of the edge-detected image: {spice.data.shape}')
spice.preprocess.show_image(title='Edge-detected Image')

Size of the edge-detected image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_34_1.png

[27]:

tracker.recording_stop()

Clean up shapes¶

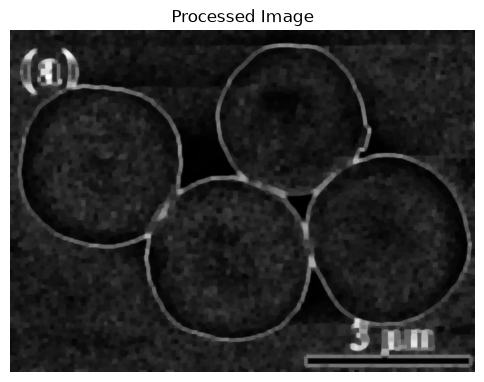

Morphological operations use a 5 × 5 window: dilation grows bright areas, erosion shrinks them, opening removes small specks, and closing fills small gaps.

[28]:

tracker.recording_start()

[29]:

# --------- Block 9: Morphological operations (first pass) ----------

spice.preprocess.morphological_operation(operation='dilation', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='erosion', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='opening', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='closing', kernel_size=(5, 5))
print(f'Size after morphological operations: {spice.data.shape}')
spice.preprocess.show_image(title='Processed Image')

Size after morphological operations: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_38_1.png

[30]:

tracker.recording_stop()

Separate foreground and background¶

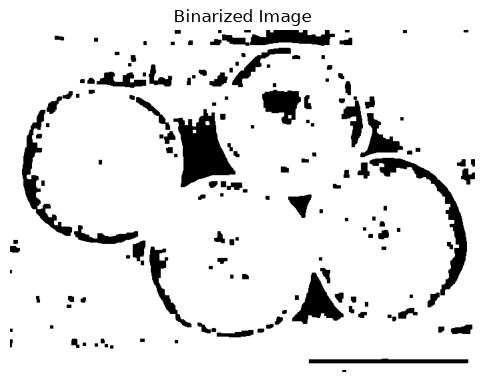

Binarization sets pixels above 5 % of the value range to 1 and all others to 0.

[31]:

tracker.recording_start()

[32]:

# --------- Block 10: Binarize ----------

thresh = 0.05
spice.preprocess.binarize(threshold=thresh)
print(f'Size of binarized image: {spice.data.shape}')
spice.preprocess.show_image(title='Binarized Image')

Size of binarized image: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_42_1.png

[33]:

tracker.recording_stop()

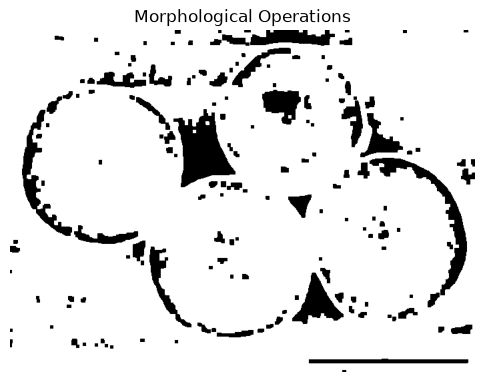

A second round of morphological operations smooths the binary shapes.

[34]:

tracker.recording_start()

[35]:

# --------- Block 11: Morphological operations (second pass) ----------

spice.preprocess.morphological_operation(operation='dilation', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='erosion', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='opening', kernel_size=(5, 5))
spice.preprocess.morphological_operation(operation='closing', kernel_size=(5, 5))
print(f'Size after morphological operations: {spice.data.shape}')
spice.preprocess.show_image(title='Morphological Operations')

Size after morphological operations: (512, 697)

../../_images/notebooks_preprocessing_preprocessing_basics_46_1.png

[36]:

tracker.recording_stop()

Label connected regions¶

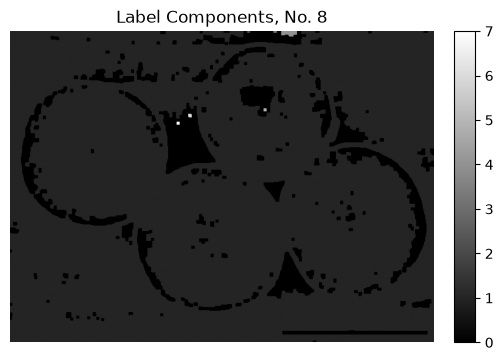

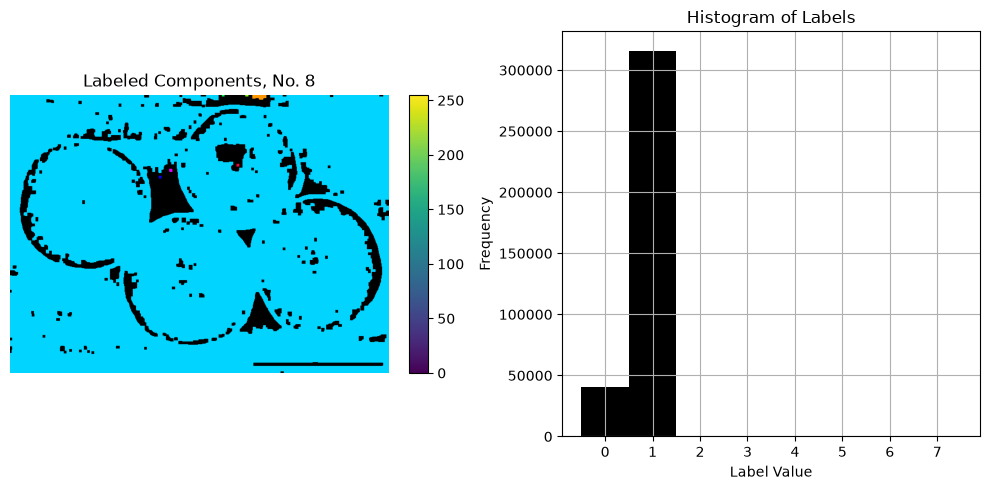

Each group of touching foreground pixels gets its own number, so regions can be counted and measured. The count in the title includes the background (label 0).

[37]:

tracker.recording_start()

[38]:

# --------- Block 12: Label components ----------

# label_components returns (num_labels, labels, stats, centroids) directly —
# not spice — since it has multiple outputs. spice.data is still updated in
# place to the labeled image.
num_labels, labels, stats, centroids = spice.preprocess.label_components(
    connectivity=8
)
spice.preprocess.show_image(
    title=f'Label Components, No. {num_labels}', show_colorbar=True
)
spice.preprocess.show_labels(
    labels=labels,
    title=f'Labeled Components, No. {num_labels}',
    show_colorbar=True,
    show_histogram=True,
)

../../_images/notebooks_preprocessing_preprocessing_basics_50_0.png

../../_images/notebooks_preprocessing_preprocessing_basics_50_1.png

[39]:

tracker.recording_stop()

Save and review¶

We save the label image and print the whole pipeline, rebuilt from the history as runnable code.

[40]:

tracker.recording_start()

[41]:

# --------- Block 13: Save ----------
save_data(spice)

stem = 'preprocessing_basics'
print(f'Data:           {os.path.join(notebook_dir, stem + ".npy")}')
print(f'JSON sidecar:   {os.path.join(notebook_dir, stem + ".json")}')
print(f'History script: {os.path.join(notebook_dir, stem + "_history.py")}')

Data:           /Users/amir/GIT_repositories/juspice_pre_release/notebooks/preprocessing/preprocessing_basics.npy
JSON sidecar:   /Users/amir/GIT_repositories/juspice_pre_release/notebooks/preprocessing/preprocessing_basics.json
History script: /Users/amir/GIT_repositories/juspice_pre_release/notebooks/preprocessing/preprocessing_basics_history.py

[42]:

# --------- Block 14: Inspect human-readable history ----------

# spice.history.to_lines() reconstructs the full preprocessing pipeline
# applied to this SPICEData object into readable, runnable code: the
# initial load_data(...) call followed by each spice.preprocess.<method>()
# call in execution order, using the actual runtime argument values, and
# a trailing save_data(spice).
readable_lines = spice.history.to_lines()

print('Reconstructed preprocessing pipeline for this SPICEData object:')
print('\n'.join(readable_lines))

Reconstructed preprocessing pipeline for this SPICEData object:
import juspice
spice = juspice.io.load_data('/Users/amir/GIT_repositories/juspice_pre_release/Sample_data/em/1b935635dd.png')
spice.preprocess.equalize_histogram()
spice.preprocess.standardize()
spice.preprocess.resize(width=1394, height=1024)
spice.preprocess.downsample(factor=2)
spice.preprocess.normalize()
spice.preprocess.apply_filter(filter_type='gaussian', kernel_size=[5, 5])
spice.preprocess.edge_detection(method='sobel')
spice.preprocess.morphological_operation(operation='dilation', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='erosion', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='opening', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='closing', kernel_size=[5, 5])
spice.preprocess.binarize(threshold=0.05)
spice.preprocess.morphological_operation(operation='dilation', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='erosion', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='opening', kernel_size=[5, 5])
spice.preprocess.morphological_operation(operation='closing', kernel_size=[5, 5])
spice.preprocess.label_components(connectivity=8)
juspice.io.save_data(spice)

[ ]:

[43]:
