Node List

Node List

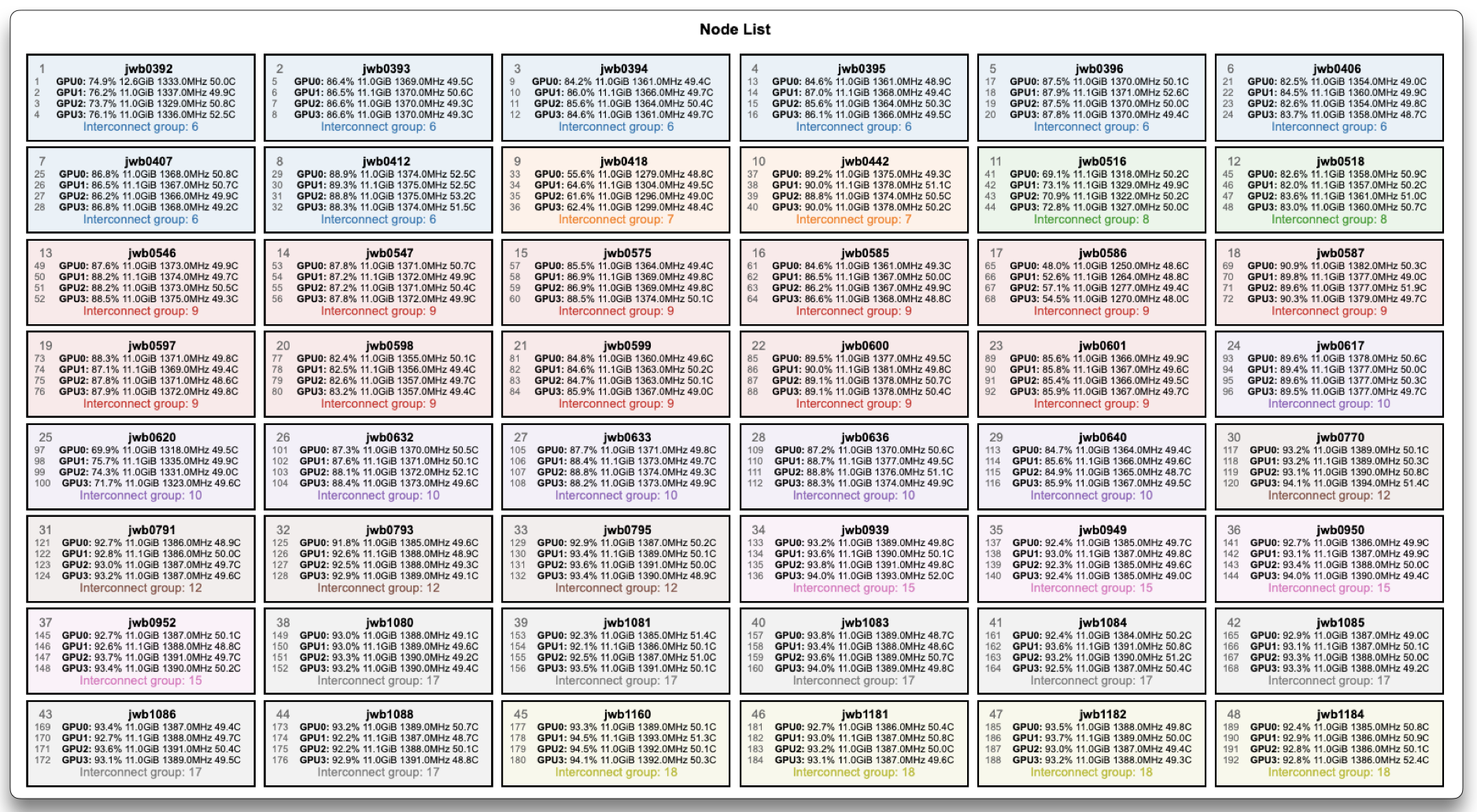

Allocated nodes coloured by interconnect group

The Node List displays every allocated node as a labelled box, coloured by its interconnect group—a logical grouping that indicates network proximity (nodes sharing a colour are more tightly connected).

When a node encounters an error, its box border turns red to highlight the issue.

Inside each node box:

  • Node name (e.g., node001).
  • GPUs (if present): each GPU is numbered and shows key metrics:
  • Average GPU Active SM (%) or Utilization (%)
  • Average memory usage (MiB) or memory usage rate (%)
  • Average SM clock frequency (MHz) and temperature (°C)

Use this layout to quickly identify:

  • Which nodes are in the same interconnect group (for communication locality).
  • GPU performance variations across nodes.
  • Outliers or imbalances in resource usage before inspecting detailed graphs.
  • Which nodes experienced errors (outlined in red).
