Data Mover Service

The Data Mover service is based on a software called nodeum. The purpose of the Data Mover is to smoothly transfer data between storage endpoints, which may operate on different principles (e.g. POSIX file systems, object storages, etc.) or serving different clusters.

The Exascale system JUPITER also has a dedicated storage clusters providing EXAFLASH, EXADATA and EXAHOME. This ensures independence and thus higher resilience in case of outages on the existing facility JUST.

We have established a Data Mover service, EXA-JUST-Mover, to support users in moving data between the existing Jülich storage cluster JUST and EXAHOME + EXADATA, which both provide high capacity HDD storage. We provide dedicated nodes for this purpose that are directly connected to the high speed interconnect. We provide a command line tool, nd, so users can trigger the Data Mover Service to perform specific actions.

We have also established a second Data Mover Service, EXA-FLASH-Mover, for transfers between the spinning disk-based clusters of ExaSTORE and the faster NVMe based cluster EXAFLASH. This can stage data for large job runs which have demands for high-bandwidth, responsive storage. Space on ExaFLASH is limited in comparison to EXADATA, which is why the intended workflow involves staging data on and off of EXAFLASH. It is planned to integrate the EXA-FLASH-Mover service into the job scheduling system of JUPITER. When it is available, users can define jobs with dependencies to create workflows like:

Transfer data to ExaFLASH ⇒ Compute ⇒ Transfer results to ExaSTORE

This document covers how to use the Data Mover command line tool.

Technical Concept

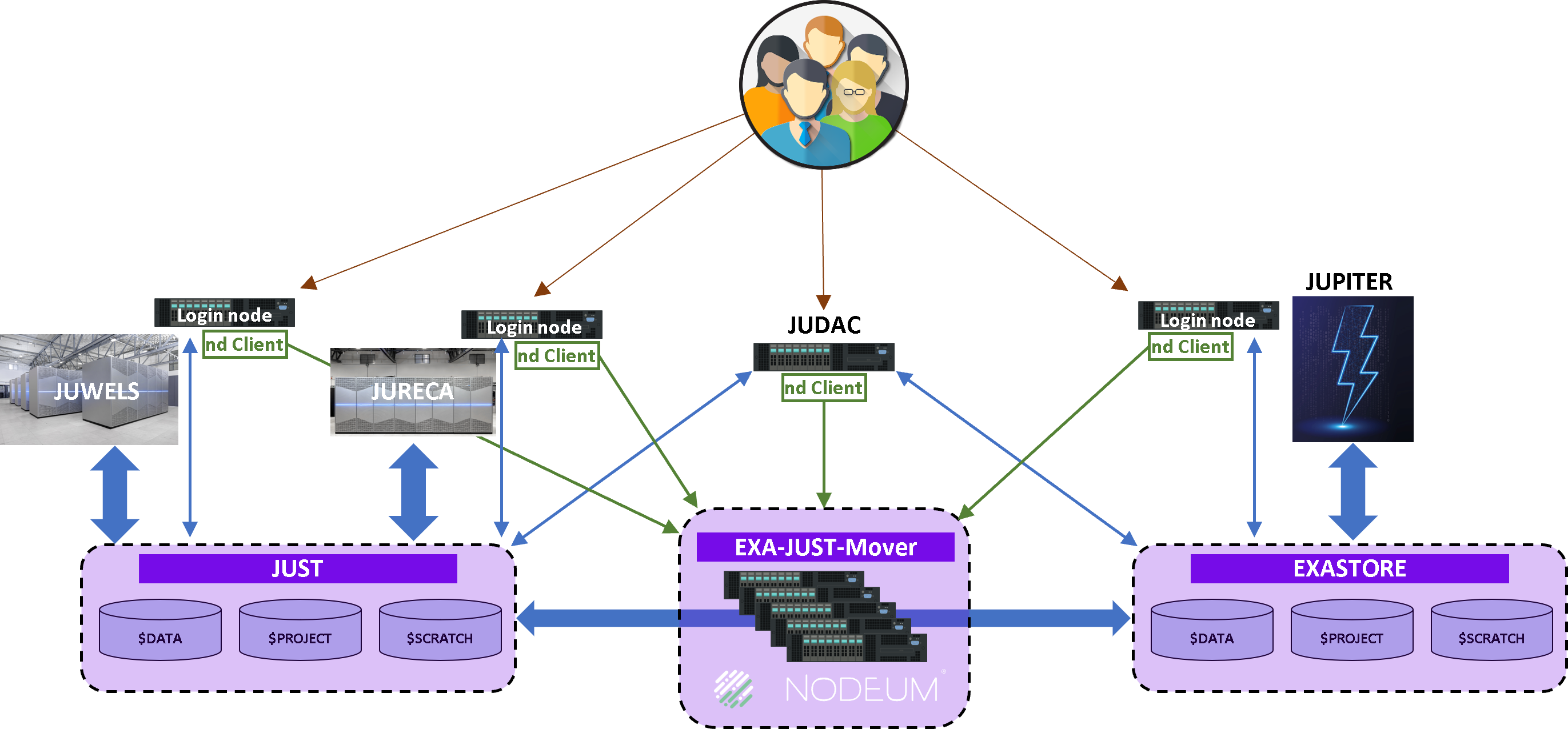

_images/Data-Mover.png

  • Data Mover Cluster: A dedicated cluster will run the data transfer between the storage pools. There are two available: EXA-JUST-Mover to connect JUST and ExaSTORE, and EXA-FLASH-Mover to move data between ExaSTORE and the fast (NVMe based) storage ExaFLASH.

  • Authentication: The Data Mover services EXA-JUST-Mover and EXA-FLASH-Mover require an authentication against the Jülich HPC LDAP service. This is automatically achieved when a user logs into either JUDAC or JUPITER via a terminal.

  • Storage Pool: The Data Mover can move data/files between different storage repositories which are POSIX file systems or object store. In the nd CLI each repository is defined as a “pool”. In the Jülich Data Mover services between JUST/ExaSTORE and ExaFLASH/ExaSTORE are only type “POSIX filesystem” available:

    Pool

    Storage cluster

    EXA-JUST-Mover

    EXA-FLASH-Mover

    Description

    largedata2

    XCST

    X

    /p/largedata2

    data1

    JUST

    X

    /p/data1

    project1

    JUST

    X

    /p/project1

    scratch

    JUST

    X

    /p/scratch

    exa_project1

    ExaSTORE

    X

    /e/project1

    exa_scratch

    ExaSTORE

    X

    X

    /e/scratch

    exa_data1

    ExaSTORE

    X

    X

    /e/data1

    exa_fscratch

    ExaFLASH

    X

    /e/fscratch

A description of the HPC file systems can be found here.

Data Mover Command Line Interface (CLI)

The Nodeum Tool

The nd client is installed on all JUDAC nodes and all HPC login nodes. It is available for all users. It does not require a module to be loaded.

You can use the nd client with a command of the form:

nd [global options] command [command options] [arguments...]

Available commands include:

admin
auth-service   Service that manages users based on Linux users
config         configure the Nodeum Client
copy, cp       create copy task
move, mv       create move task
pool           manage pools
server-config
task
help, h        Shows a list of commands or help for one command

A full list of global options can be seen with the command nd help, but most users should not need to interact with them. Additional options for specific commands, which can be very useful, are covered below.

Data transfer task

A task is a discrete data transfer triggered by the nd client. The tool saves information about each task in its database.

Create copy or move data task

To send a copy/move request to the data mover service, use a command of the form:

nd copy [command options] SOURCE [SOURCE...] [DESTINATION]
nd move [command options] SOURCE [SOURCE...] [DESTINATION]

  • SOURCE is a source file or directory.

  • DESTINATION is the target filename or target directory.

  • optional arguments for nd copy and nd move (standard):

    Option name

    Alternative

    Description

    Value (type)

    Default

    --help

    -h

    Show help

    --no-run

    Create the task, but don’t run it

    false

    --name value

    -n value

    Name task

    string

    auto generated

    --comment value

    Add an additional comment for task

    string

    --priority value

    Set the priority of the task, between 0 and 9 (0 is highest)

    0-9

    0

    --recursive

    -R

    Set whether copy/move is recursive

    true

    --working-dir

    --wd

    Define the working directory and the path that will be kept at the destination

    string

    ‘.’

    --ignore-hidden

    Task will ignore hidden files

    false

    --progress

    Display live progress while running the task

    true

    --processed-nodes

    If --progress is used, display nodes that have been processed.

    none, error, all

    error

  • optional arguments for `

    Option name

    Alternative

    Description

    Value (type)

    Default

    --parallel value

    Define the number of movers which will handle the movement

    integer

    1

    --callback type

    Execute custom script on finalizing task.

    ./path/to/file

    --trigger-md key=value

    --md key=value

    Set metadata on the trigger.

    key=value

    --task-md key=value

    Set metadata on the task.

    key=value

    --files-md key=value

    Set metadata on the files.

    key=value

Note

In our setup the nd client behaves similar to the rsync command by default:

  • If SOURCE is a directory, it will perform the transfer recursively, transferring sub-directories and the files contained within them.

  • If SOURCE directory name is given with a trailing slash, only the content of the directory will be copied. Otherwise, the contents of the directory itself will be copied.

Example: copying data

Here is an example using the nd command to copy data:

$>  pwd
/p/project1/myproject

$> nd copy mydir /e/project1/myexaproject/
Started Copying from nod://project1/myproject/mydir to nod://exa_project1/myexaproject/
Processed size ... done! [8.61GB in 3s]
Processed items ... done! [67 in 3s]
          ID: 69c411f65cf21269bc04c655
     Task ID: 69c411f6b4fc8e29c789416f
        Name: From nod://project1/myproject/mydir to nod://exa_project1/myexaproject/
     Comment:
  Created by: johndoe1
       Nodes: 67 / 67
        Size: 8.61 GB / 8.61 GB
      Status: done

Alternatively, one can use the absolute path:

$> nd copy /p/project1/myproject/mydir /e/project1/myexaproject/

or the notation of the nd client, using the pool name instead of the base directory:

$> nd copy nod://project1/myproject/mydir nod://exa_project1/myexaproject/

Task handling

Every copy/move command will trigger an asynchronous job on the Data Mover cluster.

Note

By default the nd (copy|move) command does not return until the data transfer has finished. Pressing [Ctrl]-c will stop output, but the transfer itself will continue.

Useful commands for task handling include:

  • list your tasks: nd task list

  • get status of a specific task: nd task status <TASK ID>

  • pause a running task: nd task pause <TASK ID>

  • check which files are already transferred: nd task processed <TASK ID>

  • resume a stopped task: nd task resume <TASK ID>

  • stop (cancel) a task: nd task stop <TASK ID>

List all created tasks

This command lists all tasks created by the user in the data mover service. The columns describe:

  • TASK ID: ID of the Task

  • TASK NAME: Name of the task defined during the creation

  • COMMENT: Associated comment.

  • CREATE BY: User who has created the task

$> nd task list

+-------------------+-----------------+---------+------------------+------------+-----------------------+
| TASK ID           | TASK NAME       | COMMENT | CREATED AT       | CREATED BY | LAST EXECUTION STATUS |
+-------------------+-----------------+---------+------------------+------------+-----------------------+
| 696470...7f0a484b | From ... to ... |         | 1/12/26, 7:56 AM | johndoe1   | done                  |
+-------------------+-----------------+---------+------------------+------------+-----------------------+
| 696470...7f0a3dc7 | From ... to ... |         | 1/9/26, 2:06 PM  | johndoe1   | done                  |
+-------------------+-----------------+---------+------------------+------------+-----------------------+
| 696470...45aa6396 | From ... to ... |         | 1/9/26, 10:56 AM | johndoe1   | done                  |
+-------------------+-----------------+---------+------------------+------------+-----------------------+
| NUMBER OF TASK(S) | 3               |         |                  |            |                       |
+-------------------+-----------------+---------+------------------+------------+-----------------------+
